Products   <   Pump Drives

AM 050

Description

MAXIMUM THROUGH POWER 500 HP (373 kW) FOR 1:1 RATIO @ 1,800 RPM

  • Compact design – 1:1 ratio throughput

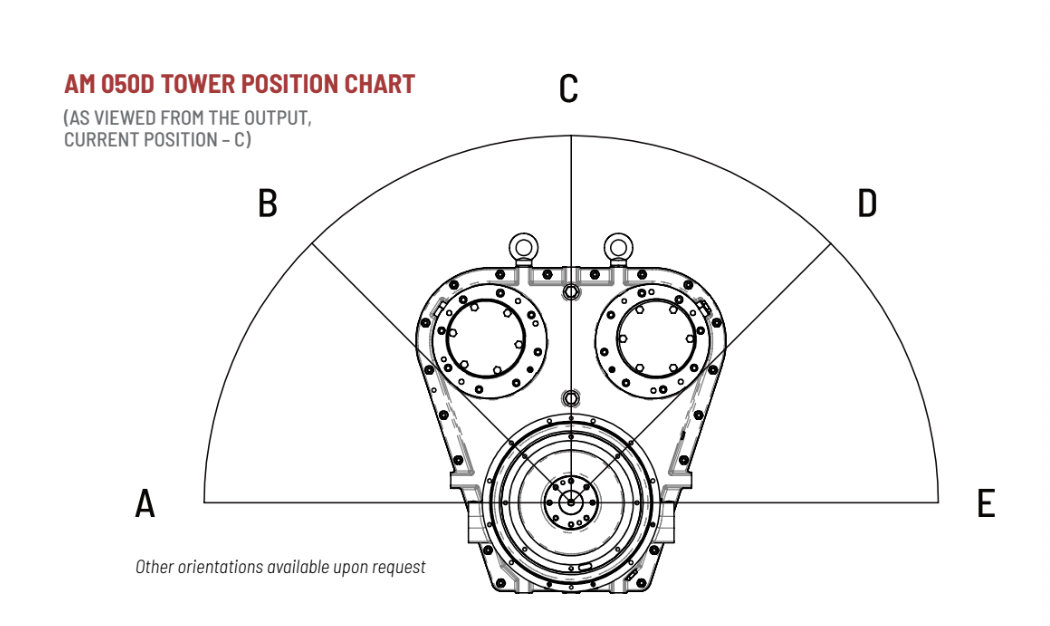

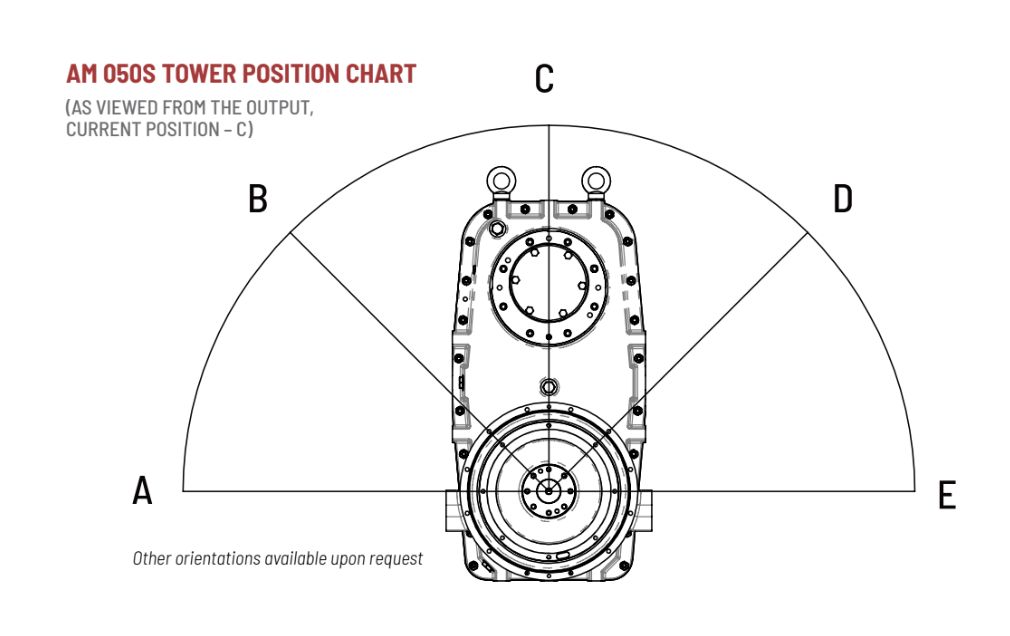

  • Single & dual tower options
  • Pump tower ratios: 1.00:1, 0.87:1, & 0.77:1
  • Up to 4 pump pads available
  • SAE #3 through SAE #1 input/output housings
  • SAE 11.5″ through SAE 14″ input/output flywheel connection
  • SAE “A” through SAE “E” pump pads & splines
  • Maximum input torque based on theoretically unlimited gear life and a minimum L10 bearing life of 10,000 hours
TECHNICAL DATA

Model
Number

Maximum Through Power Rating

Maximum Through Power Rating

Maximum Through Power Rating

Maximum
Speed (RPM)

Pump Power Capacity

Pump Power Capacity

Weight
Kg (lbs)

Model
Number

@ 1800 RPM

@ 2200 RPM

@ 2600 RPM

Maximum
Speed (RPM)

1 Tower (2 Pads)

2 Tower (4 Pads)

Weight
Kg (lbs)

AM050D

500 HP
(373 kWH)

600 HP
(447 kWH)

700 HP
(522 kWH)

2600 rpm

300 HP
(223 kW)

300 HP
(223 kW)

343 kg
(756 lbs)*

AM050S

500 HP
(373 kWH)

600 HP
(447 kWH)

700 HP
(522 kWH)

2600 rpm

300 HP
(223 kW)

N/A

277 kg
(611 lbs)*

*Includes SAE 1 Input & SAE 1 Flywheel Output

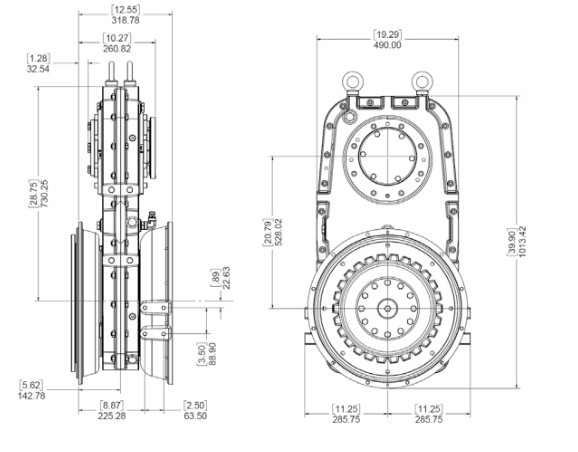

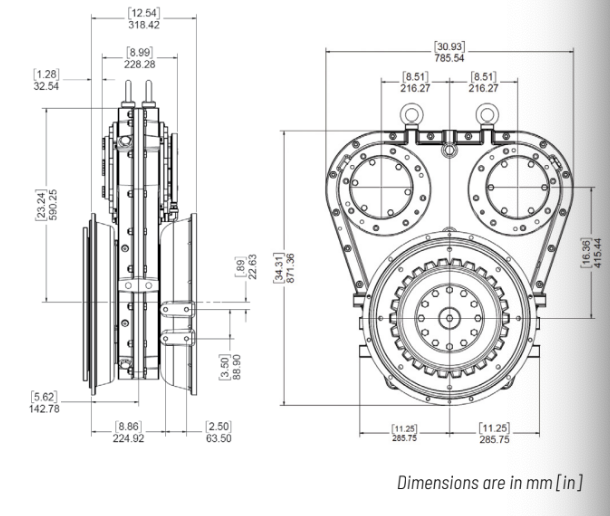

DIMENSIONS
